Electric spindle for grinding

Click PDF for more detail

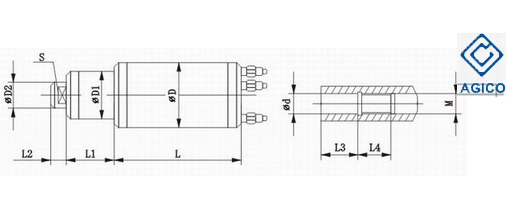

Spindle type　 Speed 　 　 　 　 Dimensions(mm) Lub Spindle  nose  Dimension Bearings  type
(r/min) KW V A Hz D D1 D2 S L L1 L2 　 d M L3 L4 　
AD70-60/1 60000 1 132 4.7 1000 70 48 12 9 137 9 11 Oil fog 6 M6×1 10 9 1×7001C/P4
1×7001C/P4
AD80-60/1.5 60000 1.5 220 6 1000 80 55 15 13 137 9 11 Oil fog 8 M8×1.25 16 18 1×7002C/P4
1×7001C/P4
AD80-60/2 60000 2 350 6 1000 80 55 16.8 14 183 7 9 Oil fog 9 M8×1.25 12 15 1×7003C/P4
1×7002C/P4
AD80-90/1.5 90000 1.5 220 4.7 1500 80 50 12 9 137 9 11 Oil fog 6 M6×1 8 9 1×7001C/P4
1×7001C/P4
ADQ80-90/2.5 90000 2.5 350 5.4 1500 80 50 12 10 272 6 8 Oil fog 7 M6×1 12 12 2×7001C/P4
2×7000C/P4
ADW80-100/1.2 100000 1.2 220 4.7 1666 80 40 12 9 221 4 11.5 Oil fog 6.7 M12×0.75 (Outside) 3 6.5 1×7001C/P4
1×7000C/P4
ADW100-60/2.5 60000 2.5 306 7.2 1000 100 64 16 14 220 31 9 Oil fog 9 M8×1.25 12 15 2×7003C/P4
2×7002C/P4
AD120-36/2.7 36000 2.7 264 7.7 600 120 84 23 19 237 43 16 Oil fog 14 M14×1.5 21 19 2×7005C/P4
2×7003C/P4
AD120-36Z/2.7 36000 2.7 264 7.7 600 120 84 18.5 16 232 54 16 Oil fog 10 M10×1.5 12 16 2×7004C/P4
2×7003C/P4
ADL120-36/5.5 36000 5.5 350 12 600 120 91 28 24 271 36 14 Oil fog 16 M16×1.5 26 17 2×7006C/P4
2×7005C/P4



Electric spindle for grinding

Click PDF for more detail

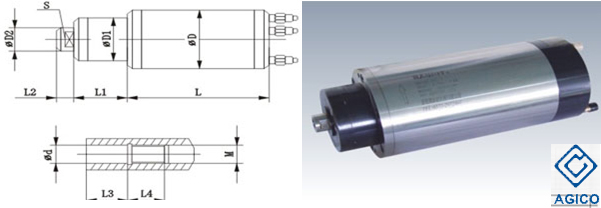

Spindle type Speed Motor Dimensions(mm) Lub Spindle  nose  dimensions Bearingstype
　 (r/min) KW V A Hz D D1 D2 S L L1 L2 　 d M L3 L4 　
ADL120-42/6 42000 6 350 12.5 700 120 84 23 19 244 28 15 Oil fog 14 M14×1.5 18 19 2×7005C/P4
2×7004C/P4
ADQ120-42/10 42000 10 350 15.4 700 120 84 23 19 256 43 15 Oil fog 14 M14×1.5 25 19 2×7005C/P4
2×7004C/P4
ADQ120-45/7.5 45000 7.5 350 16 750 120 80 33 30 273 30 13 Oil fog 15 M14×1.5 8 22 2×7006C/P4
2×7005C/P4
ADL120-48/5 48000 5 350 12.5 800 120 84 23 19 250 30 15 Oil fog 14 M14×1.5 19 22 2×7005C/P4
2×7004C/P4
ADQ120-48/8 48000 8 350 14 800 120 84 23 19 256 43 16 Oil fog 14 M14×1.5 25 19 2×7005C/P4
2×7004C/P4
ADQ120-51/8 51000 8 350 14 850 120 78 18 16 240 43 16 Oil fog 10 M10×1.5 16 14 2×7004C/P4
2×7003C/P4
ADQ120-60/6 60000 6 350 11 1000 120 64 15.8 14 220 31 10 Oil fog 9 M8×1.25 15 14 2×7003C/P4
2×7002C/P4
ADQ120-75/5 75000 5 350 9.4 1250 120 70 13.5 12 203 26 12 Oil fog 8 M8×1 16 12 2×7002C/P4
2×7002C/P4
AD140-24Z/2.5 24000 2.5 220 7.9 400 140 88 28 24 210 58 16 Oil fog 14 M14×1.5 19 20 2×7006C/P4
2×7005C/P4
AD140-24Z/4 24000 4 220 15.2 800 140 95 28 24 244 43 16 Grease 16 M14×1.5 28 23 2×7006C/P4
2×7005C/P4
AD140-30Z/3.6 30000 3.6 220 14 500 140 84 23 19 234 53 15 Grease 14 M14×1.5 21 19 2×7005C/P4
2×7004C/P4
ADL140-36/5.5 36000 5.5 350 12 600 140 95 28 24 264 36 16 Oil fog 16 M16×1.5 24 19 2×7006C/P4
2×7005C/P4
AD150-12Z/4.5 12000 4.5 293 11.9 400 150 114 38 32 235 57 21 Grease 20 M16×1.5 27 24 2×7208C/P4
2×7208C/P4
AD150-15/10 15000 10 350 22 500 150 120 48 41 365 48 21 Oil fog 28 M27×1.5 42 25 2×7010C/P4
2×7008C/P4
ADW150-18Z8/5.5 18000 5.5 220 19.6 300 150 104 38 32 319 50 21 Grease 20 M18×1.5 27 25 2×7008C/P4
2×7006C/P4
ADL150-18/10 18000 10 350 23 600 150 118 43 36 345 48 21 Oil fog 25 M24×2 45 25 2×7009C/P4
2×7008C/P4
Spindle type Speed Motor Dimensions(mm) Lub Spindle nose dimension Bearings type
　 (r/min) KW V A Hz D D1 D2 S L L1 L2 　 d M L3 L4 　
AD170-6/9 6000 9 350 20.3 200 170 140 58 50 409 59 24 Oil fog 38 M36×2 50 25 2×7212C/P4
2×7209C/P4
ADW170-9/12 9000 12 350 25.3 300 170 133 58 50 408 43 24 Oil fog 38 M36×2 50 25 2×7012C/P4
2×7208C/P4
ADW170-9Z/12 9000 12 350 25.3 300 170 133 53 46 408 44 24 Oil fog 33 M33×1.5 50 25 2×7011C/P4
2×7208C/P4
ADW170-12Z/7 12000 7 220 23.8 200 170 124 43 36 364 56 23 Oil fog 25 M24×1.5 27 25 2×7209C/P4
2×7208C/P4
ADL170-12/10 12000 10 350 23 400 170 124 53 50 364 43 27.5 Oil fog 33 M33×1.5 50 25 2×7011C/P4
2×7208C/P4
ADL170-12Z/10 12000 10 350 23 400 170 124 48 41 359 40 23.5 Grease 28 M27×1.5 44 27 2×7010C/P4
2×7208C/P4
ADL170-12/12 12000 12 350 28 400 170 124 53 50 389 43 27.5 Oil fog 33 M33×1.5 50 25 2×7011C/P4
2×7208C/P4
ADQ170-12/15 12000 15 350 34 400 170 143 62 55 398 73 29 Oil fog 40 M36×2 60 25 2×7013C/P4
2×7209C/P4
ADL170-15/10 15000 10 350 23 500 170 114 48 41 352 38 24 Oil fog 28 M27×1.5 42 25 2×7010C/P4
2×7009C/P4
ADL170-18/10 18000 10 350 23 600 170 118 43 36 345 48 21 Oil fog 25 M24×2 45 25 2×7009C/P4
2×7008C/P4
ADQ170-18/20 18000 20 350 43 600 170 126 48 41 430 45 23 Oil fog 28 M24×2 45 25 2×7010C/P4
2×7008C/P4
ADQ170-24/16 24000 16 350 34 800 170 118 43 36 392 39 23 Oil fog 25 M24×2 45 25 2×7009C/P4
2×7007C/P4
ADQ170-24/20 24000 20 350 46 800 170 118 43 36 420 39 23 Oil fog 25 M24×2 45 25 2×7009C/P4
2×7007C/P4
AD190-6/10 6000 10 350 21 200 190 156 68 65 435 39 25 Oil fog 45 M42×2 49 38 2×7014C/P4
2×7211C/P4
ADW190-7.5Z/20 7500 20 350 42 250 190 156 63 60 520 76 33 Oil fog 40 M36×2 54 38 3×7013C/P4
2×7211C/P4
AD190/150-6Z/10 6000 10 350 21 200 190 150 57 50 381 253 25 Oil fog 36 M33×1.5 49 25 3×7212C/P4
2×7210C/P4
ADW190-15/20 15000 20 350 43 500 190 144 53 50 389 45 26 Oil fog 32 M30×2 50 25 2×7011C/P4
2×7009C/P4
ADQ200-6/20 6000 20 350 43 200 200 170 68 65 525 103 32 Oil fog 45 M42×2 54 38 4×7014C/P4
2×7211C/P4
AD100-36Z/2S 36000 2 220 9 600 100 79 18 15 222 46 10 Oil fog 9 M8×1.25L 12 16 2×B7004C/P4
2×B7002C/P4
AD110-30/4.5 30000 4.5 350 11.6 500 110 81 20 25 328 30 80 　 　 　 　 　 2×B7006C/P4
2×B7005C/P4
ADQF165-36/4.3 36000 4.3 220 33.2 600 165 85 23 20 175 17 12 　 　 　 　 　 2×B7005C/P4
2×B7004C/P4
ADW190-15Z/20S　 15000 20 350 42.1 500 190 — — — 404 — — 　 　 　 　 　 2×B7009C/P4
2×B7008C/P4
ADL200-1.5/5.5 1500 5.5 380 12.7 100 200 160 — — 391 339 100 Oil fog 1.5 4×7213C/P4
2×7210C/P4
ADL150-12Z/6.5 12000 6.5 350 14 400 150 43 34 — — — — 　 　 　   　 2×B7009C/P4
2×B7008C/P4
