The Working Out Way of Electric Spindle Products
Click PDF for more detail| Spindle type | Speed (r/min) |

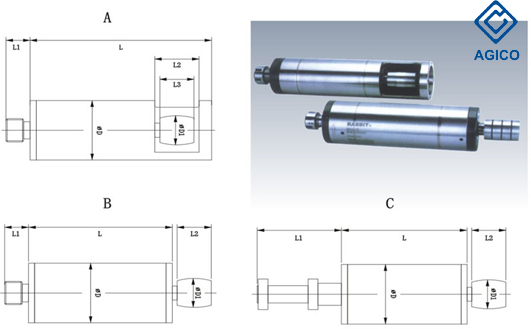

Physical dimensions(mm) | Drawing number | Joint of spindle nose |
Bearings type | |||||
| D | D1 | L | L1 | L2 | L3 | |||||
| MX507 | 16000 | 80 | 44 | 310 | 65 | 75 | 54 | A | ER25 | 2×7205C |
| MX08-25 | 20000 | 80 | 38 | 250 | 35 | 55 | ---- | B | ER20 | 2×7205C |
| MX08-25A | 20000 | 80 | 38 | 250 | 30 | 55 | ---- | B | ER25 | 2×7205C |
| MX10-34 | 10000 | 100 | 72 | 340 | 219 | 70 | ---- | C | ---- | 2×7208C |
| MX11-33 | 7600 | 110 | 85 | 298 | 186 | 66 | ---- | C | ---- | 2×7209C |
MX11-44 |
7000 | 110 | 60 | 280 | 96 | 60 | ---- | B | ---- | 2×7209C/P4 |
| 1×6007vv/P5 | ||||||||||
