The Electric Spindle for Numerical Control Milling Machine

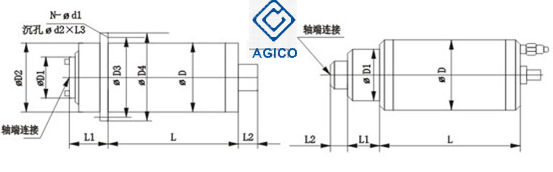

Click PDF for more detail| Spindle type | Dimension(mm) | Outside Drawing | |||||||||
| D | D1 | D2 | D3 | D4 | L | L1 | L2 | N-D1 | D1×L3 | ||
| ADX62/110-12-24Z/2.5 | 110 | 62 | — | — | — | 181 | 195 | 45 | — | — | 2 |
| ADX85/110-12-24/2.5 | 110 | 85 | — | — | — | 226 | 120 | 35 | — | — | 2 |
| ADX110-18Z/3.2 | 110 | 81 | — | — | — | 271 | 38 | 12 | — | — | 2 |
| ADX120-4-12Z/0.9 | 120 | — | 81 | — | — | 262 | 15 | 23 | — | — | 2 |
| ADX120-8Z/2.5 | 120 | 81 | — | — | — | 332 | 15 | 23 | — | — | 2 |
| ADS140-9-14Z/5.5 | 140 | 115 | — | — | — | 302 | 91 | 43 | — | — | 2 |
| ADX150-18Z/7.3 | 150 | 115 | — | — | — | 302 | 91 | 43 | — | — | 2 |
| ADX160-6Z/6 | 160 | 68 | — | — | 170 | 371 | 50 | 35 | — | — | 2 |
| ADX160-6Z/9 | 160 | 68 | 150 | 180 | 200 | 408 | 78 | 12 | 6—Φ10.5 | Φ17×12 | 1 |
| ADS1730-3-9Z/3.7 | 170 | 62 | 143 | 195 | 220 | 338 | 115 | 43 | 6—Φ12 | Φ18×10 | 1 |
| ADS1740-3-6/5 | 170 | 68 | 160 | — | — | 465 | — | 21 | — | — | 1 |
| ADX170-8Z/2 | 170 | 53 | 133 | — | — | 200 | 86 | 12 | — | — | 1 |
The Electric Spindle for Numerical Control Milling Machine
| Spindle type | Speed | Motor | Lub | Cool | Joint of nose | Bearings type | character | |||
| (r/min) | KW | V | A | Hz | ||||||
| ADX62/110-12-24Z/2.5 | 12000 | 2.5 | 220 | 10 | 200 | Grease | Water | ER16taper hole | 2×7005C/P4 | Numerial engraving |
| 24000 | 400 | 1×7004C/P4 | ||||||||
| ADX85/110-12-24Z/2.5 | 12000 | 2.5 | 220 | 10 | 200 | Grease | Water | ER20taper hole | 2×7006C/P4 | Numerial engraving |
| 24000 | 400 | 1×7005C/P4 | ||||||||
| ADX110-18Z/3.2 | 18000 | 3.2 | 220 | 6.4 | 200 | Grease | Water | ER25taper hole | 2×7007C/P4 | Numerial engraving |
| 300 | 1×7005C/P4 | |||||||||
| ADX120-4-12z/0.9 | 4000 | 0.9 | 127 | 5.6 | 66.7 | Grease | Water | ER25taper hole | 2×7007C/P4 | Numerial engraving |
| 12000 | 220 | 200 | 6006VVC/P4 | |||||||
| ADX120-8Z/2.5 | 8000 | 2.5 | 380 | 5 | 133 | Grease | Water | ER25taper hole | 2×7007C/P4 | Numerial engraving |
| 2×7006C/P4 | ||||||||||
| ADS1230-12Z/2 | 12000 | 2 | 220 | 6.9 | 200 | Grease | Water | BT30taper hole |
2×7008C/P4 | Numerial milling |
| 2×7006C/P4 | ||||||||||
| ADS140-9-14Z/5.5 | 9000 | 5.5 | 380 | 12 | 450 | Grease | Water | ER32taper hole | 3×7010C/P4 | Numerial engraving |
| 14000 | 700 | 2×7208C/P4 | ||||||||
| ADX150-18Z/7.3 | 18000 | 7.3 | 380 | 12 | 300 | Grease | Water | ER32taper hole | 3×7010C/P4 | Numerial engraving |
| 2×7208C/P4 | ||||||||||
| ADX160-6Z/6 | 6000 | 6 | 350 | 15.1 | 200 | Grease | Water | BT40taper hole | 2×7014C/P4 | Numerial milling |
| 2×7209C/P4 | ||||||||||
| ADX160-6Z/9 | 6000 | 9 | 350 | 20.3 | 200 | Grease | Water | BT40taper hole | 2×7014C/P4 | Numerial milling |
| 2×7209C/P4 | ||||||||||
| ADS1730-3-9Z/3.7 | 3000 | 3.7 | 220 | 12.5 | 100 | Grease | Water | BT30taper hole | 2×7013C/P4 | Numerial milling |
| 9000 | 380 | 11.3 | 300 | 2×7209C/P4 | ||||||
| ADS1740-3-6Z/5 | 3000 | 5 | 269 | 13.9 | 100 | Grease | Water | BT40taper hole | 2×7014C/P4 | Numerial engraving |
| 6000 | 380 | 200 | 2×7209C/P4 | |||||||
| ADX170-8Z/2 | 8000 | 2 | 350 | 5 | 267 | Grease | Water | BT30taper hole | 2×7011C/P4 | Numerial milling |
