The Working Out Way of Electric Spindle Products

Click PDF for more detail

Spindle type　 Speed Motor Dimensions(mm) Lubricate manner　 Cooling manner　 Bearings type　 Joint of nose　 Joint of tail　
(r/min) KW V A Hz D D1 L L1 L2
ADX1240-30Z/1 30000 1 220 3.7 500 120 73 97 22 29 Grease

water

2×7004C/P4
 ER11 BT30
1×6003/P5 BT40
ADX1240-24Z/1 24000 1 220 3.7 400 120 73 97 22 29 Grease water 2×7005C/P4 ER16 BT30
1×6004/P5 BT40
ADX1550-15Z/1.5 15000 1.5 220 5.7 250 150 124 105 25 30 Grease

water

2×7007C/P4 ER20 BT40
1×6005/P5 BT50

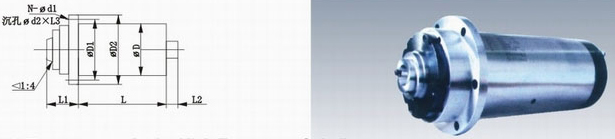

Spindle type Speed Motor Dimensions(mm) Joint of nose Bearings type　
(r/min) KW V A Hz D D1 D2 L L1 L2 N-ød1 Ød2×13 Outside circle
Inside hole
ADC150A3T-4-6Z/2.4 4000 2.4 310 6.8 133 150 170 194 315 80 42 6-ø9 Ø14×10 A3T-Mohs4 3×7010CTA/P4
6000 380 6.4 200 2×7008CTA/P4
ADC170T-1.5-3Z/2 1500 2 269 5.95 50 170 190 210 383 115 59 6-ø9 Ø14×10 M42×3-ø20 3×7012CTA/P4
3000 380 100 2×7009CTA/P4
ADC170A25-1.5-4Z/2 1500 2 269 5.9 50 170 190 210 395 92 58 6-ø9 Ø14×10 5 A25-Mohs5 3×7012CTA/P4
4000 380 133 2×7010CTA/P4
ADC220A25-2-6Z/5.5 2000 5.5 220 21 66.7 220 240 270 370 90 58 8-ø11 Ø18×11 A25-Mohs5 3×7013CTA/P4
6000 380 20.1 200 2×7011CYA/P4
ADC240A26-1.5-5Z/7.5 1500 7.5 220 30 50 240 265 290 375 105 58 8-ø13 Ø20×13 A26-Mohs6 3×7015CTA/P4
5000 380 167 2×7013CTA/P4
ADC335A26-0.75-4.7Z/11 750 11 184 45.7 37.5 335 370 400 567 195 58 8-ø15 Ø22×15 A26-Mohs6 3×7020CTA/P4
4700 460 4.8 235 2×7018CTA/P4

* Lub: Grease
