The Electric Spindle for Numerical Control Milling Machine

Click PDF for more detail

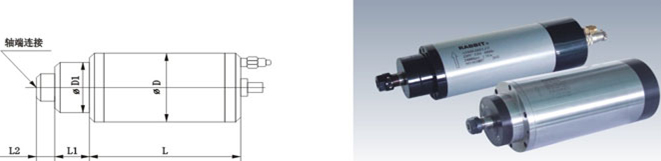

Spingdle type  Speed(r/min) Motor Dimensions(mm) Lub Bearings type
KW V A HZ D D1 Joint of spindle nose L L1 L2
ADX58-24Z/0.8 24000 0.8 220 2.3 400 58 44 ER11-Φ3.175 199 5 20 Grease 1×7002C/P4
1×7001C/P4
ADX60-24Z/0.2.5 24000 0.25 220 1.2 400 60 55 ER11-Φ3.175 162 6 25 Grease 1×B7002C/P4
1×B7000C/P4
ADX62-24Z/0.25 24000 0.25 220 1.2 400 62 55 ER11-Φ3.175 162 6 25 Grease 1×B7002C/P4
1×B7000C/P4
ADX62-24Z/0.5 42000 0.5 220 2.4 700 62 55 ER11-Φ3.175 162 6 25 Grease 1×B7002C/P4
1×B7000C/P4
ADX62-51/0.7H 51000 0.7 220 2.7 1000 62 _ ER11-Φ3.175 180 _ 14 Grease 1×B7002C/P4
1×B7001C/P4
ADX80-24Z/1T 24000 1 220 4.9 400 80 80 ER16-Φ8 196 3 22 Grease 1×B7004C/P4
1×B7003C/P4
ADX80-24Z/1.5 24000 1.5 220 5.8 400 80 _ ER16-Φ8 235 _ 23.5 Grease 1×B7005C/P4
1×B7003C/P4
ADX80-24Z/1.5B   1.5 220 5.5 400 80 60 ER16M-Φ3.175 216 33 21 Grease 2×7004C/P4
24000 2×7002C/P4
ADX80-24Z/1.5BF 24000 1.5 220 5.5 400 80 60 ER16M-Φ3.175 216 33 21 Grease 2×7004C/P4
2×7002C/P4
ADX80-24Z/2.2 24000 2.2 220 8 400 80 58 ER16M-Φ6 217 37 28 Grease 2×7004C/P4
1×7003C/P4
ADX80-30Z/1.8HB 30000 1.8 220 7 500 80 61 ER16 242 10 25 Grease 2×B7005C/P4
2×B7003C/P4
Spingdle type Speed Motor Dimensions(mm) Lub Bearings type
  (r/min) KW V A H2 D D1 Joint of spindle nose L L1 L2
ADX150-9-18Z/5 9000 5 269 14.2 300 150 110 ER25-Φ12.7 345 32 43 Grease 2×B7007C/P4
18000 380 600 2×B7006C/P4
ADX150-24Z/4.5 24000 4.5 293 10.4 400 150 94 ER25-Φ12.7 235 50 32 Grease 2×B7006C/P4
2×B7005C/P4
ADX150-24Z/7.3HB 24000 7.3 293 15.5 400 150 112 ER20 281 33 33 Grease 2×B7006C/P4
2×B7005C/P4
ADX100-15Z/3。6B 15000 3.6 380 7.2 250 100 -- ER20 281 33 33 Grease 2×7007C/P5
2×7005C/P5
ADX58-24Z/0.8A 24000 0.8 220 2.3 400 58 44 ER11 197 23 18 Grease 2×B7002C/P4
1×6001C/P5
ADX100-24Z/3.2B 24000 3.2 380 6.5 400 100 80 ER20 249 28 33 Grease 2×7005C/P4
220 11.4 400 2×7004C/P4
ADX125-18Z/5.5B 18000 5.5 380 8.9 300 125 96 ER25 307 17 28 Grease 2×B7007C/P4
2×B7005C/P4
ADX150-24Z/6 24000 6 293 15.5 400 150 104 ER20 297 40 25 Grease 2×B7007C/P4
2×B7005C/P4
ADX62-24Z/0.8 24000 0.8 220 2.2 400 62 55 ER11 206 10 20 Grease B7002C/P4
B7000C/P4
ADX60-24Z/0.25A 24000 0.25 220 1.2 400 60 55 ER11 179 10 19

Grease

2×B7002C/P4
1×6000VVC/P5
