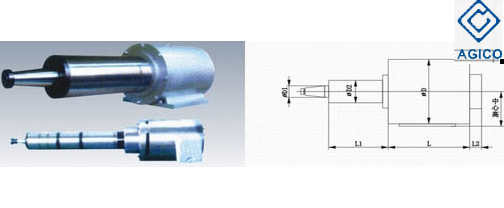

The Electric Spindle for Special Grinding
Click PDF for more detail| Spindle type | Speed (r/min) | Motor | Physical Dimensions | Lub | Spinde nose form | Bearings type | Character | |||||||||
| KW | V | A | Hz | D | D1 | D2 | L | L1 | L2 | Centre height | ||||||
| ADM140-3Z/7.5 | 2800 | 7.5 | 380 | 15.1 | 50 | 260 | 67 | 140 | 381 | 300 | 34 | 140 | Grease | Cylinder stairs | 4×B7014C/P4 | Electric Spindle for grinding of Large railway bearing |
| 2×B7012C/P4 | ||||||||||||||||
| ADM170-1.5Z/11 | 1460 | 11 | 38 | 22.6 | 50 | 320 | 65 | 170 | 360 | 210 | 50 | 170 | Grease | Outside taper1:5 | 4×7017C/P4 | |
| 2×7213C/P4 | ||||||||||||||||
| ADM170-1.5Z/12 | 1460 | 12 | 380 | 30.5 | 50 | 320 | 72 | 170 | 455 | 158 | 35 | 170 | Grease | Outside taper1:5 | 4×7215C/P4 | |
| 2×7213C/P4 | ||||||||||||||||
| ADM170-1.5Z/15 | 1460 | 15 | 380 | 30.5 | 50 | 320 | 80 | 180 | 400 | 450 | 53 | 170 | Grease | Outside taper1:5 | 4×7017C/P4 | |
| 2×7213C/P4 | ||||||||||||||||
| ADM200-1.5-3Z//5.5 | 1500-3000 | 5.5 | 294-380 | 12.7 | 50-100 | 200 | 60 | 160 | 339 | 70 | — | — | Grease | Outside taper1:5 | 2×7213C/P4 | |
| 2×7210C/P4 | ||||||||||||||||
| ADM76/150-3Z/0.75 | 3000 | 0.75 | 230-460 | 2.9-1.5 | 50 | 150 | 25.4 | 76.2 | 219 | 308 | — | — | Grease | Outside taper1:4 | 2×7206C/P4 | spindle for Parrel plane grinding machine |
| 2×7007C/P4 | ||||||||||||||||
| ADM76/160-3Z/1.1 | 3000 | 1.1 | 380 | 1.9 | 50 | 150 | 25.4 | 76.2 | 234 | 308 | — | — | Grease | Outside taper1:4 | 2×7206C/P4 | |
| 2×7007C/P4 | ||||||||||||||||
| ADM76/165-3Z/L1.5 | 3000 | 1.5 | 380 | 2.5 | 50 | 165 | 25.4 | 76.2 | 267 | 308 | — | — | Grease | Outside taper1:4 | 2×7206C/P4 | |
| 2×7008C/P4 | ||||||||||||||||
| ADM76/200-3Z/2.25 | 3000 | 2.25 | 380 | 3.7 | 50 | 200 | 25.4 | 76.2 | 247 | 308 | — | — | Grease | Outside taper1:4 | 2×7206C/P4 | |
| 2×7009C/P4 | ||||||||||||||||
| ADM140-1.5Z/5.5 | 1500 | 5.5 | 380 | 6.76 | 50 | 140 | 56 | 74 | — | 359 | — | — | Grease | Outside taper1:5 | 2×7013C/P4 | |
| 2×7013C/P4 | ||||||||||||||||
| ADM260-1.5Z/7.5 | 1500 | 7.5 | 380 | 15.3 | 50 | 260 | 65 | 190 | 325 | 409 | — | — | Grease | Outside taper1:5 | 4×7017C/P4 | |
| 2×7015C/P4 | ||||||||||||||||
| 1×7007C/P4 | ||||||||||||||||
| ADM10A-3Z/3G | 2880 | 3 | 380 | 6.39 | 50 | 205 | 32 | 130 | 316 | 155 | — | — | Grease | Cylinder stairs | 3×7210C/P4 | |
| 1×6206T1´VV/P5 | ||||||||||||||||
| ADM108-3Z/3G | 2880 | 3 | 380 | 6.39 | 50 | 205 | 32 | 130 | 316 | 155 | — | — | Grease | Cylinder stairs | 3×7210C/P4 |
|
| 1×6206T1´VV/P5 |
|
|||||||||||||||
