The Working Out Way of Electric Spindle Products

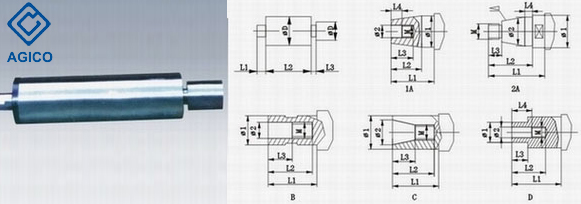

Click PDF for more detail| Spindle | nose type |
Physical Dimensions(mm) | Spindle nose dimensions | Speed | Bearings | |||||||||||
| type | L | L1 | L2 | Φd1 | Φd2 | Φ1 | Φ2 | L1 | L2 | L3 | L4 | M | taper | r/min | type | |
| Pz06-25 | C | 50 | 250 | 40 | 60 | 18 | 18 | 10.5 | 6 | 25 | 43 | -- | M3 | 1:10 | 24000 | 2×7004C/P4 |
| 2×7004C/P5 | ||||||||||||||||
| PZ2A72-220 | 2A | 69 | 234 | -- | 76 | -- | -- | 25.4 | 69 | -- | 20 | 3 | M16×1 left |
1:4 | 2800 | 2×7006C/P4 |
| 1×7204C/P4 | ||||||||||||||||
| PZ08-(25-40) | B | 41 | 250 | 65 | 80 | 52 | 28 | 16 | 60 | 46 | 25 | -- | M14×1.5 | -- | 16000 | 2×7206C/P4 |
| -400 | 2×7206C/P5 | |||||||||||||||
| PZ10-(25-56) | B | 50 | 250 | 65 | 100 | 65 | 37 | 16 | 51 | 47 | 25 | -- | M14×1.5 | -- | 12000 | 2×7208C/P4 |
| -560 | 2×7208C/P5 | |||||||||||||||
| PZ11-(25-56) | B | 50 | 250 | 65 | 110 | 65 | 37 | 16 | 51 | 47 | 25 | -- | M14×1.5 | -- | 12000 | 2×7208C/P4 |
| -400 | 2×7208C/P5 | |||||||||||||||
| PZ12-(35-56) | B | 50 | 350 | 65 | 120 | 70 | 48 | 25 | 50 | 62 | 38 | -- | M14×1.5 | -- | 8000 | 2×7211C/P5 |
| -560 | 2×7211C/P5 | |||||||||||||||
| PZ16-(35-56) | B | 38 | 350 | 42 | 160 | 125 | 50 | 35 | 38 | 40 | 18 | -- | M20×2 | -- | 8000 | 2×7211C/P5 |
| -560 | 2×7211C/P5 | |||||||||||||||
| 2PZ14-(40-65) | D | 174 | 400 | 70 | 140 | 80 | 32 | 20 | 182 | 60 | 45 | 34 | M18×1.5 | -- | 4000 | 3×7212C/P4 |
| -650 | 2×7212C/P5 | |||||||||||||||
| 2PZ14/16-65 | D | 162 | 650 | 70 | 140 | 90 | 32 | 20 | 169 | 95 | 45 | 50 | M18×1.5 | -- | 4000 | 2×7213C/P4 |
| 160 | 2×7212C/P5 | |||||||||||||||
| 2PZ14-80 | 1A | 68 | 800 | 75 | 140 | 140 | 50 | 13 | 73 | 50 | 35 | 6 | M12 | 1:5 | 2200 | 3×7212C/P4 |
| 2×7212C/P5 | ||||||||||||||||
| 2PZ15-40 | 2A | 128 | 400 | 65 | 150 | 130 | -- | 60 | 101 | 84 | 24 | -- | M39×1.5 | 1:5 | 2300 | 1×C3182115K |
| 1×C2268115 | ||||||||||||||||
| 1×C3182113K | ||||||||||||||||
| 2PZ17-(35-65) | 2A | 63 | 350 | -- | 170 | -- | 70 | 60 | 69 | 62 | 17 | 5.5 | M45×1.5 | 1:5 | 4000 | 2×7215C/P5 |
| -650 | 2×7215C/P5 | |||||||||||||||
| 2PZ18-80 | 2A | 147 | 830 | 97 | 180 | 140 | 80 | -- | 169 | 90 | 22 | M50×1.5 | 1:5 | 3000 | 1×C3182118 | |
| 2×CD46118 | ||||||||||||||||
| 1:5 | 2×B46216 | |||||||||||||||
| 2PZ19-45 | 2A | 85 | 475 | 75 | 190 | 170 | -- | 70 | 112 | 90 | 23 | 17 | M50×1.5left | 1400 | 1×C697516 | |
| 1×D7516 | ||||||||||||||||
| PZ20-110 | 2A | 130 | 1135 | 65 | 200 | 125 | -- | 65 | -- | 167 | 35 | 30 | M30×1.5 | 1:5 | 3000 | 4×7014C/P4 |
| 2×7014C/P4 | ||||||||||||||||
| PZ2A22.5 | 2A | 197 | 1015 | 86 | 225 | 145 | -- | 90 | -- | 167 | 22 | 20 | M50×2left | 1:5 | 2400 | 3×7220C/P4 |
| 2×7220C/P5 | ||||||||||||||||
| PZ1A16-30 | 2A | -- | 85 | 300 | 160 | 180 | 84 | 72 | 85 | 18 | 43 | 15 | M40 | 1:5 | 3000 | NN3016K/P4 |
| 2×7016C/P4 | ||||||||||||||||
| 2×7014C/P5 | ||||||||||||||||
| PZ17-72 | 1A | -- | 83 | 740 | 170 | 190 | 74 | 70 | 89 | 70 | 30 | 10 | M16 | 1:5 | 2800 | 3×7215C/P4 |
| 2×7212C/P5 | ||||||||||||||||
| PZ09-2M3 | C | -- | 2 | 250 | 90 | -- | -- | -- | -- | -- | -- | -- | M14×1.5 | 2# | 8000 | 2×7207C/P4 |
| 3# | 2×7207C/P4 | |||||||||||||||
| PZ2A11-60 | 2A | -- | 105 | 603 | 110 | 126 | 38 | 38 | 112 | 85 | 35 | -- | M24×1.5 | 1:5 | 3500 | 3×7208C/P4 |
| 2×7208C/P5 | ||||||||||||||||
| PZ1A-55-25 | 1A | -- | 25 | 252 | 55 | 30 | 18 | 9 | 28 | 23 | 15 | 2 | M8 | 1:10 | 16000 | 2×7004C/P5 |
| 2×7004C | ||||||||||||||||
