The Working Out Way of Electric Spindle Products

Click PDF for more detail

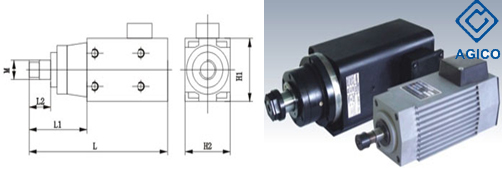

Spindle type Speed(r/min) KW V A HZ H1 H2 M L L1 L2 Bearings type
ADM40-12Z/0.12 12000 0.12 220 0.5 200 74 80 M19×1 200 64 27 1×6004VVC3/P5
1×6002VVC3/P5
ADM40-12Z/0.35 12000 0.35 220 2 200 74 80 -- 212 69 15 1×6004VVC3/P5
1×6002VVC3/P5
ADM40-15Z/0.37 15000F 0.37 220 1.6 250 74 80 M18×1.5 223 72 28 1×6004VVC3/P5
1×6002VVC3/P5
ADX40-15Z/0.5 15000 0.5 220 1.7 250 74 80 M16×1.5 210 56 27 1×6004VVC3/P5
1×6002VVC3/P5
ADM40-20Z/0.7 20000 0.7 220 2.3 333 74 80 M14×0.75 204 62 27 1×6003VVC3/P5
1×6002VVC3/P5
ADM40-24Z/0.24 24000 0.24 220 1.2 400 74 102 M19×1 200 64 27 1×6004VVC3/P5
1×6002VVC3/P5
ADX51-10Z/1.8 10000 1.8 380 3.7 166 120 102 M27×2 332 131 48 2×7007C/P4
1×6004VVC3/P5
ADX51-12Z/1.5U 12000 1.5 220 4.9 200 120 102 M25×1.5 289 94 36 2×7006C/P4
1×6004VVC3E/P5
ADX51-18Z/2.5U 18000 2.5 220 9.4 300 120 102 M25×1.5 309 94 36 2×7006C/P4
1×6004VVC3E/P5
ADX51-18Z/3.37 18000 3.37 380 7.1 300 120 102 M25×1.5 338 122 36 2×7006C/P4
1×6004VVC3E/P5
ADM60-12Z/1.5 12000 1.5 380 3.5 200 120 102 M14 335 105 65 1×6205VVC3E/P5
1×6004VVC3E/P5
MDJ14-7Z/3 7000 3 380 6.3 233 142 142 M30×2 420 157 104 2×7009C/P4
1×6007VVC3E/P5
MDJ14-7Z/4 7000 4 380 8.3 233 142 142 M30×2 465 157 104 2×7009C/P4
1×6007VVC3E/P5
ADM14-7Z/5.5 7000 1.5 380 12.4 233 142 142 M30×2 495 157 104 2×7009C/P4
1×6007VVC3E/P5
