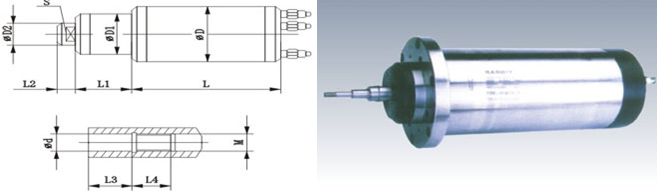

The Electric Spindle for Numerical Control Milling Machine
Spindle type | Speed | Motor | Dimensions(mm) | Lub |
Spindle nose dimension | Bearingstype | ||||||||||||
(r/min) | KW | V | A | Hz | D | D1 | D2 | S | L | L1 | L2 | d | M | L3 | L4 | |||
ADW150-24Z/4.5 | 24000 | 4.5 | 293 | 10.4 | 400 | 150 | 94 | 28 | 24 | 237 | 50 | 17 | Grease | 16 | M14×1.5 | 25 | 22 | 2×7006C/P4 |
2×7005C/P4 | ||||||||||||||||||
ADL150-24/7.3 | 24000 | 7.3 | 293 | 19.6 | 400 | 150 | 118 | 38 | 32 | 325 | 42 | 19 | Oil fog | 22 | M22×2 | 40 | 19 | 2×7008C/P4 |
2×7007C/P4 | ||||||||||||||||||
ADL150-24/7.3Q | 24000 | 7.3 | 293 | 19.6 | 400 | 150 | 118 | 38 | 32 | 340 | 38 | 19 | 22 | M22×2 | 40 | 19 | 2×7008C/P4 | |
Oil gas | 2×7007C/P4 | |||||||||||||||||
ADQ150-24/12 | 24000 | 12 | 350 | 25.5 | 800 | 150 | 118 | 38 | 32 | 328 | 39 | 20 | Oil fog | 22 | M22×2 | 40 | 19 | 2×7008C/P4 |
2×7007C/P4 | ||||||||||||||||||
ADQ150-30/10 | 30000 | 10 | 350 | 22 | 500 | 150 | 115 | 33 | 30 | 296 | 33 | 14 | Oil fog | 20 | M22×1.5 | 26 | 17 | 2×7007C/P4 |
2×7006C/P4 | ||||||||||||||||||
ADQ150-36/8.5 | 36000 | 8.5 | 350 | 19 | 600 | 150 | 105 | 28 | 24 | 280 | 32 | 14 | Oil fog | 16 | M16×1.5 | 26 | 17 | 2×7006C/P4 |
2×7005C/P4 | ||||||||||||||||||
ADW160-24Z/6 | 24000 | 6 | 293 | 15.5 | 400 | 160 | 104 | 33 | 30 | 297 | 47 | 22 | Grease | 20 | M20×1.5 | 26 | 19 | 2×7007C/P4 |
2×7005C/P4 | ||||||||||||||||||
ADW160-18Z/5.5 | 18000 | 5.5 | 220 | 19.6 | 300 | 160 | 104 | 38 | 32 | 319 | 43 | 28 | Grease | 20 | M18×1.5 | 26 | 28 | 2×7008C/P4 |
2×70068C/P4 | ||||||||||||||||||
ADL160-18/10 | 18000 | 10 | 350 | 23 | 600 | 160 | 118 | 43 | 36 | 345 | 48 | 21 | Oil fog | 25 | M18×1.5 | 45 | 25 | 2×7009C/P4 |
2×7008C/P4 | ||||||||||||||||||
AD170-6/6 | 6000 | 6 | 350 | 15 | 200 | 170 | 140 | 58 | 50 | 359 | 24 | 24 | Oil fog | 38 | M36×2 | 50 | 25 | 2×7212C/P4 |
2×7209C/P4 |
