The Electric Spindle for Numerical Control Milling Machine

Click PDF for more detail

Spindle type Speed (r/min) KW V A Hz Lub Cool Joint of spindle nose Bearing type
ADS0820-30Z/1.8 30000 1.8 220 7 500 Grease Water IS020taper hole 2×B7005C/P4   Have sensor and
broaching tool
1×7003C/P4
ADS1130-18Z/3.2 18000 3.2 220 11.6 300 Grease Water BT30taper hole 2×B7007C/P4
1×7005C/P4
ADS1130-18Z/3.2J 18000 3.2 220 11.6 300 Grease Water BT30taper hole 2×B7007C/P4
1×7005C/P4
ADS1230-24Z/5 24000 5 350 10.5 400        Grease Water BT30taper hole 2×B7007C/P4
2×7005C/P4
ADS1430-4-12Z/1.5 4000 1.5 220 5.7 133        Grease Water BT30taper hole 2×VEX55/P4
12000 380 400 2×VEX40/P4
ADS1425-18/3 18000 3.6 350 8.5 600      Grease Water   2×B7008C/P4
IS025taper hole 2×7008C/P4
ADS1530-18Z/7.3 18000 7.3 293 19 300 Grease Water BT30taper hole 2×7007C/P4
2×7006C/P4
ADS1530-18Z/7.3J 18000 7.3 293 19 300 Grease Water BT30taper hole 2×7007C/P4
2×7006C/P4
ADS1520-24Z/7.3 24000 7.3 293 19 400 Grease Water IS020 2×7006C/P4
2×7005C/P4
ADS1640-6Z/6 6000 6 380 11.7 200 Grease Water BT40taper hole 3×7014C/P4
2×7210C/P4
ADS1740-2Z/2.2 2000 2.2 350 5.9 66.7 Grease Water BT40taper hole 3×B7015C/P4
2×7011C/P4
ADS1740-3-9Z/3.7J 3000 3.7 220 12.5 100 Grease Water BT40taper hole 2×VEX65/P4
9000 380 11.3 300 2×E250/P4
ADS1740-8Z/6 8000 6 350 12.8 267 Grease Water BT40taper hole 2×7014CAT/P4
2×7209CAT/P4
ADS2040-3-10/5.5 3000 5.5 220 19.4 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 300 2×VEX55/P4
ADS2040-3-10/7.5 3000 7.5 208 25 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 333 2×VEX55/P4
ADS2940-1.5-10/11 1500 11 220 42 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 333 2×VEX55/P4
ADS2940-1.5-10/15 1500 15 220 56 100 Grease Water BT40taper hole 3×VEX65/P4
1000 380 333 2×VEX55/P4



The Electric Spindle for Numerical Control Milling Machine

Click PDF for more detail

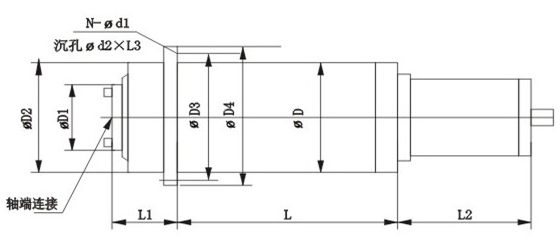

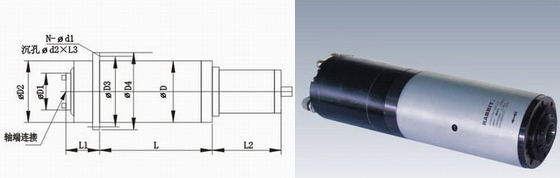

Spindle   type Dimensions(mm)
D D1 D2 D3 D4 L L1 L2 N-d1 D2×L3
ADS0820-30Z/1.8 80 25 60 -- -- 312 -- -- -- --
ADS1130-18Z/3.2 110 34 108 -- -- 217 -- -- -- --
ADS1130-30Z/3.2J 110 34 83 -- -- 238 -- -- -- --
ADS1230-24Z/5 120 34 119 140 165 335.5 50 -- -- --
ADS1430-4-12Z/15 140 53.3 140 160 180 325 70 90 8-Φ9 Φ14×9
ADS1425-18/3 140 37 95 163 186 208 87 108 6-Φ9 Φ13.5×9
ADS1530 150 34 100 -- -- 231 50.5 114 -- --
ADS1530-18Z/7.3J 150 34 100 -- -- 231 50.5 144 -- --
ADS1520-24Z/7.3 150 28 112 -- -- 254 34 110 -- --
ADS1640-6Z6 160 68 160 180 202 345 150 111 6-Φ11 Φ17×12
ADS1740-2Z/2.2 170 72 -- 195 230 655 65 124 8-Φ11 Φ17×12
ADS1740-3-9Z/3.7J 170 62 143 195 230 479 153 181 6-Φ12 Φ18×10
ADS1740-8Z/6 170 68 150 190 210 274 130 111 6-Φ11 Φ18×11
ADS2040-3-10/5.5 200 63 145 225 250 405 135 124 6-Φ13 Φ19×13
ADS2040-3-10/7.5 200 63 145 225 250 445 135 124 6-Φ13 Φ19×13
ADS2940-15-10/11 290 68 180 315 340 375 135 124 6-Φ13 Φ19×13
ADS2940-1.5-10/15 290 68 180 315 340 405 135 124 6Φ13 Φ19×13
